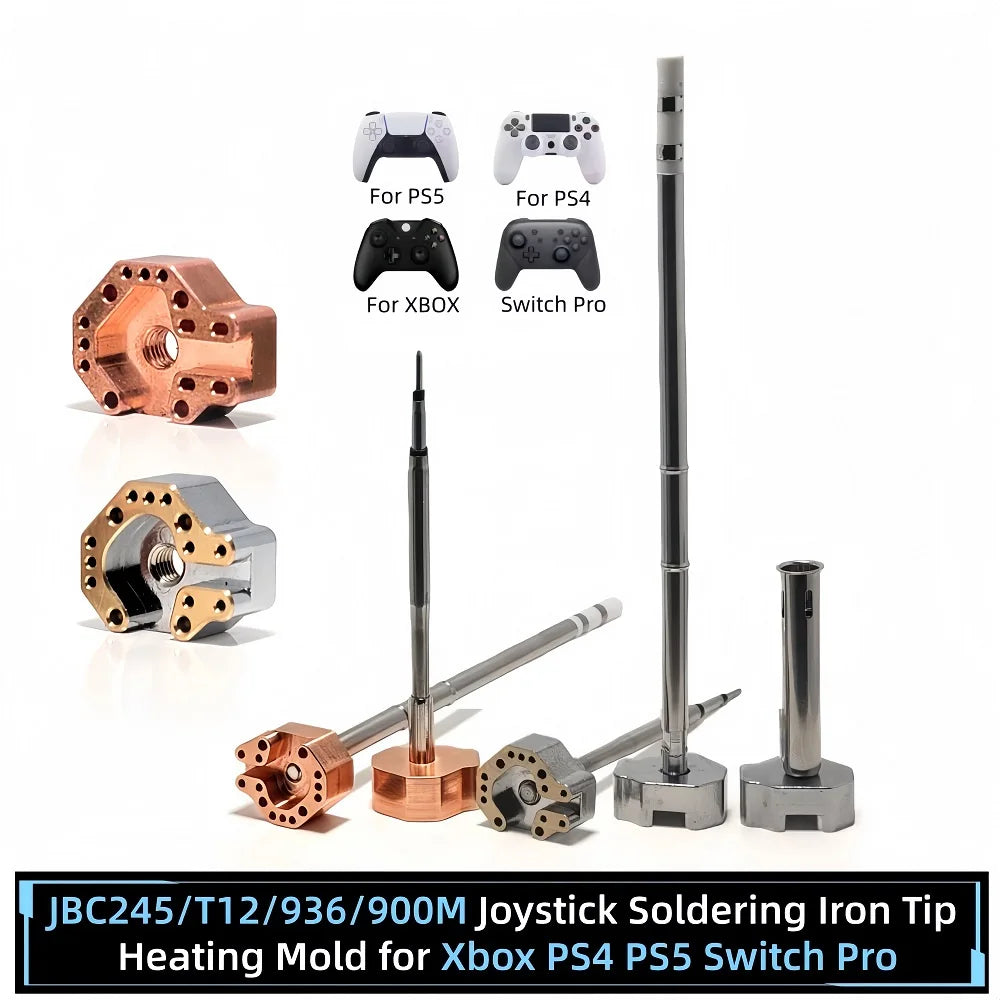

T12/JBC245/936 Joystick Soldering Iron Tip Heating Mold for Xbox PS4 PS5 Switch Pro Controller Joystick Disassembly Repair Tools

Note: The two products above are recommended products and are not included in the products listed in this link. Please be aware of this.

⚠️Kind tips

📌Confirm Compatibility: Before purchasing, please ensure this model is exactly what you need to order.
✨Shipping Address: Before finalizing your purchase, please double-check that your shipping address is correct.
⚠️Safe Installation: Handle the pins and cables with care. When soldering, pay attention to electrostatic discharge (ESD) protection and temperature control.
😊Contact Us: If you encounter any issues, please contact us via message first with detailed information. We will provide full support to resolve them.

Brief Description

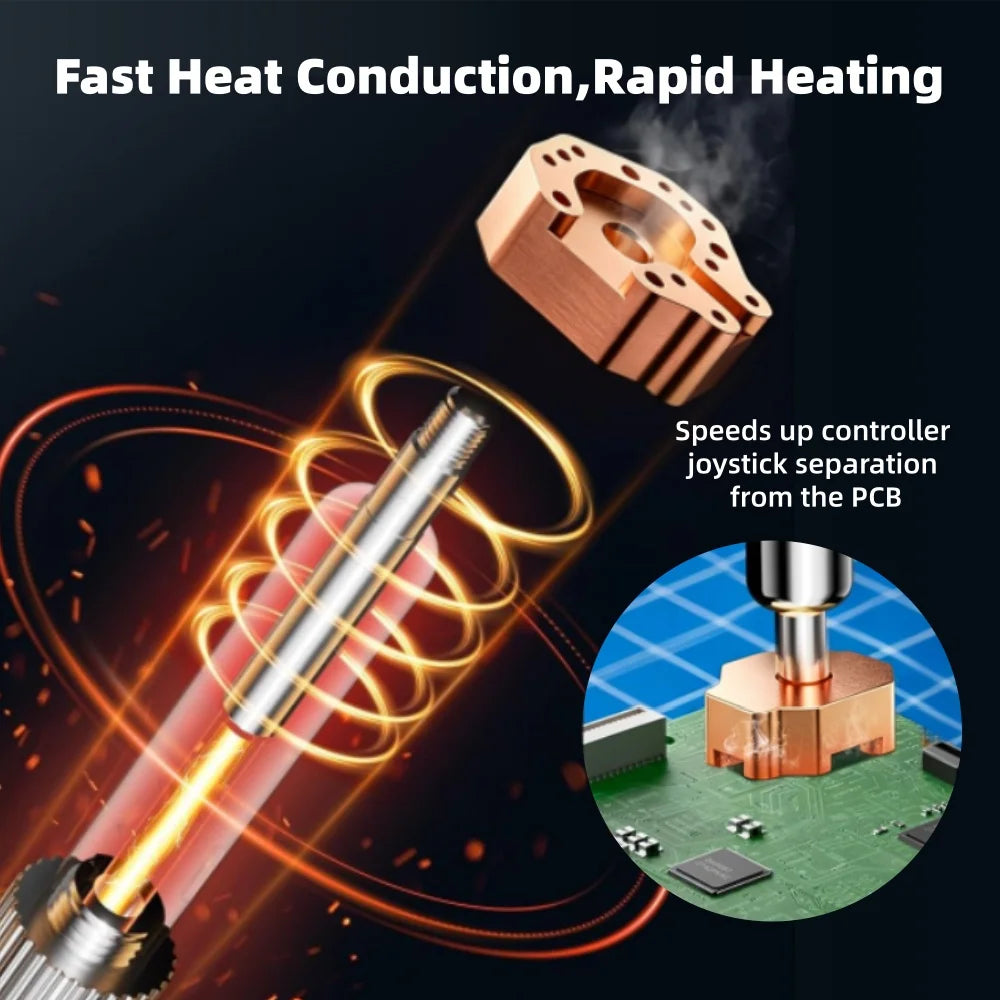

🔧 Ready-to-Use Integrated Unit – Tip and heating core are pre-assembled as one complete component. No assembly required – just plug into your compatible handle and start desoldering.

⚡ 14-Pin Simultaneous Heating – All 14 solder joints of the analog stick melt at once for fast, clean removal. No more struggling with individual pins.

🛡️ PCB Protection Design – Concentrates heat precisely at the joystick base, minimizing heat exposure to surrounding components and preventing pad lifting or board damage.

🎮 Console-Specific Application – Engineered specifically for PS5, PS4, Xbox Series X/S, Xbox One, and Switch Pro controller analog stick replacement.

⚠️ Choose Your Station Version – This listing is for [936 / T12 / C245 / 200] series stations only. Please confirm your soldering station model before ordering. (C210 is NOT compatible)

What You Get

This is a complete replacement unit – a dedicated rocker-type desoldering head and its matching heating element together. You will receive a complete assembly; no additional parts need to be purchased, and you will need to assemble it yourself.

Why You Need This

If you're experiencing stick drift on your PS5, PS4, Xbox, or Switch Pro controller, the permanent fix is replacing the worn analog stick. But removing the old stick is the hardest part – it has 14 solder points.

A standard soldering tip forces you to heat each pin one by one, which takes time and risks burning the PCB. Our specialized desoldering tip heats all 14 pins simultaneously, making removal quick, clean, and safe.

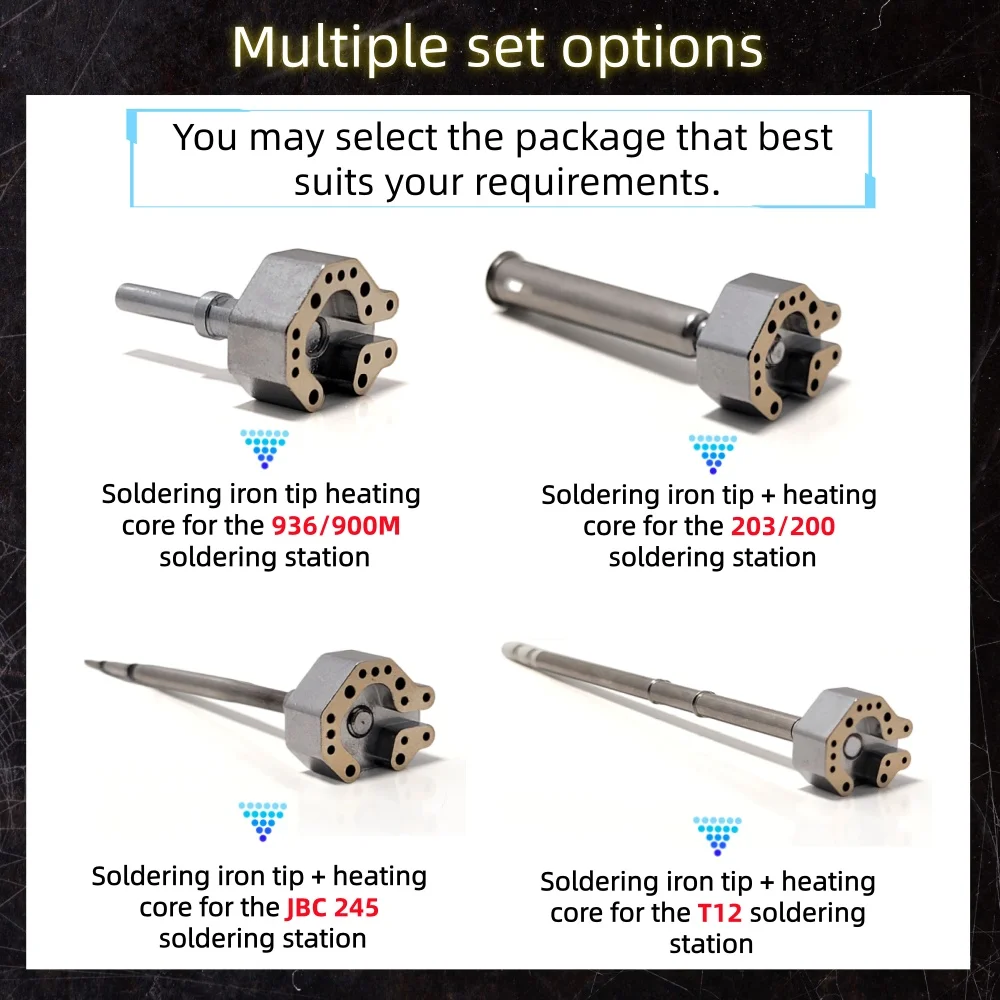

Which Soldering Station Does This Fit?

This listing is for [936 / T12 / C245 / 200] series stations. Please check your soldering iron before ordering.

If your station uses... Choose this version

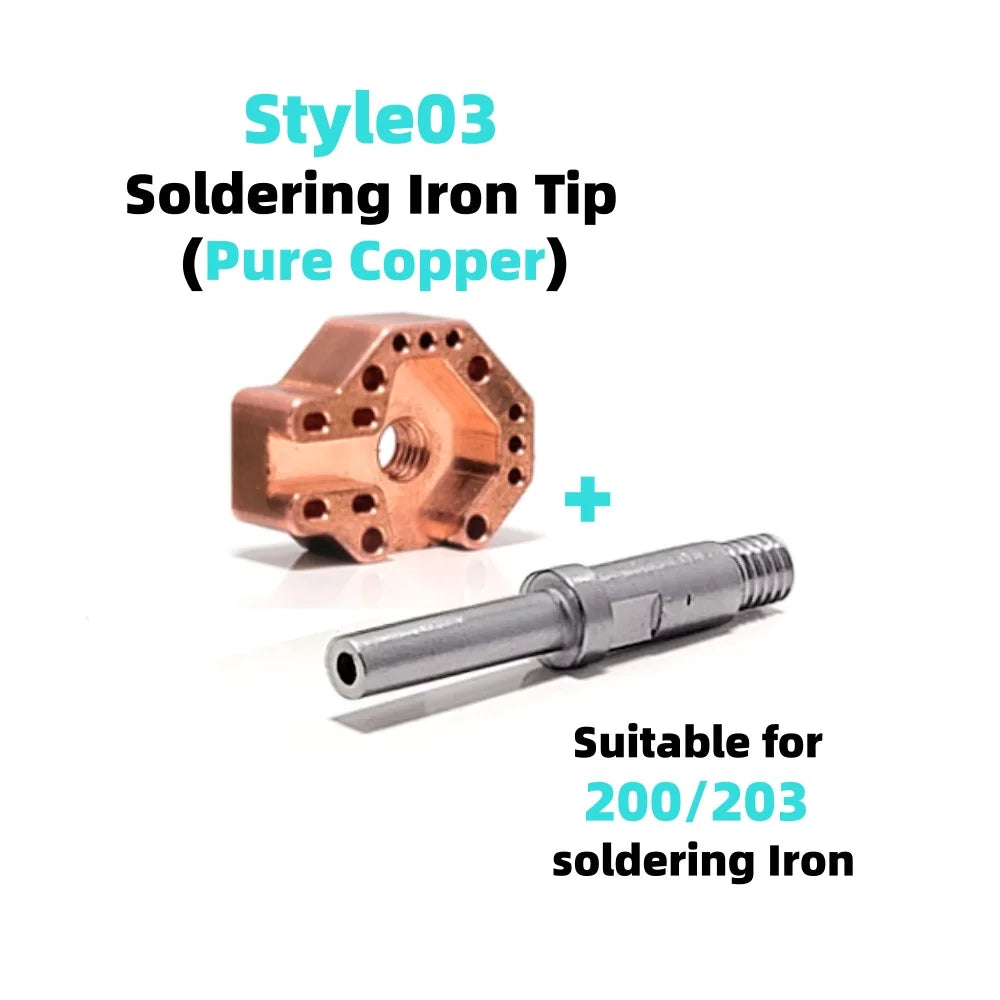

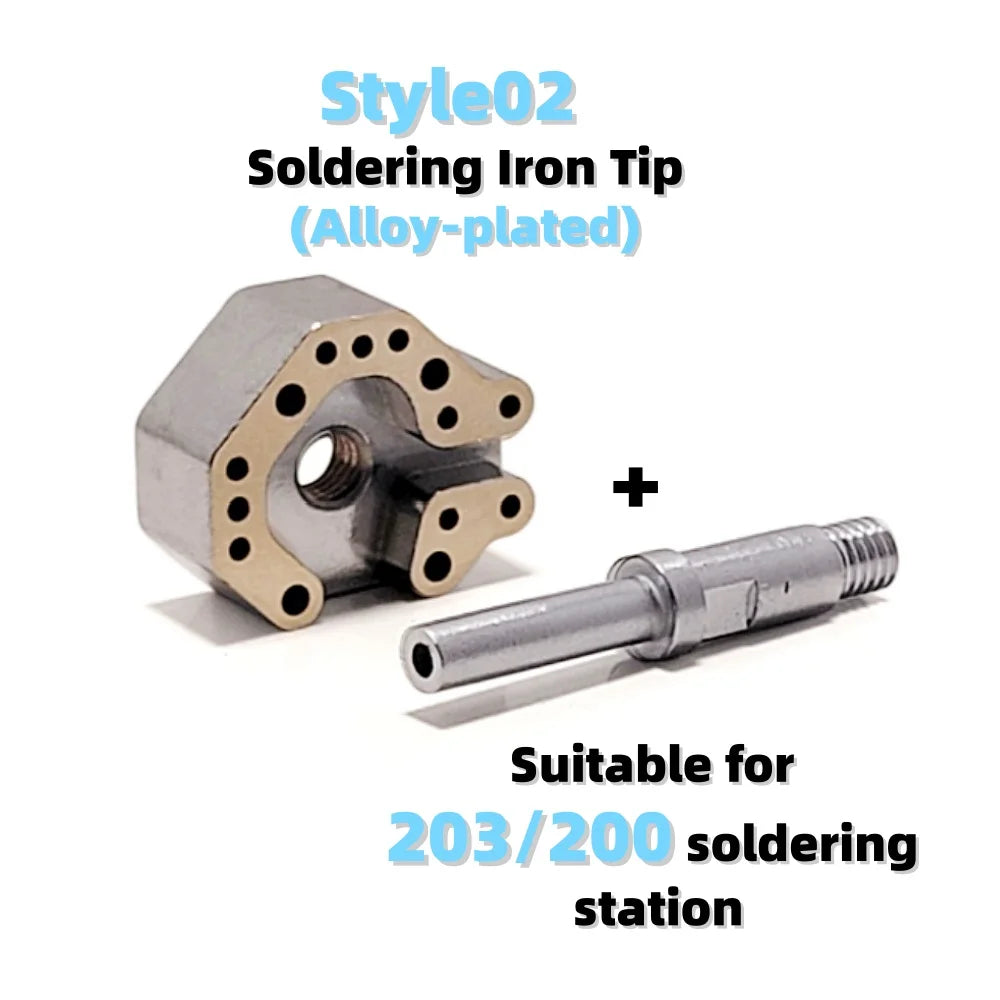

①200 series (Hakko 200/203 or compatible:200 Version

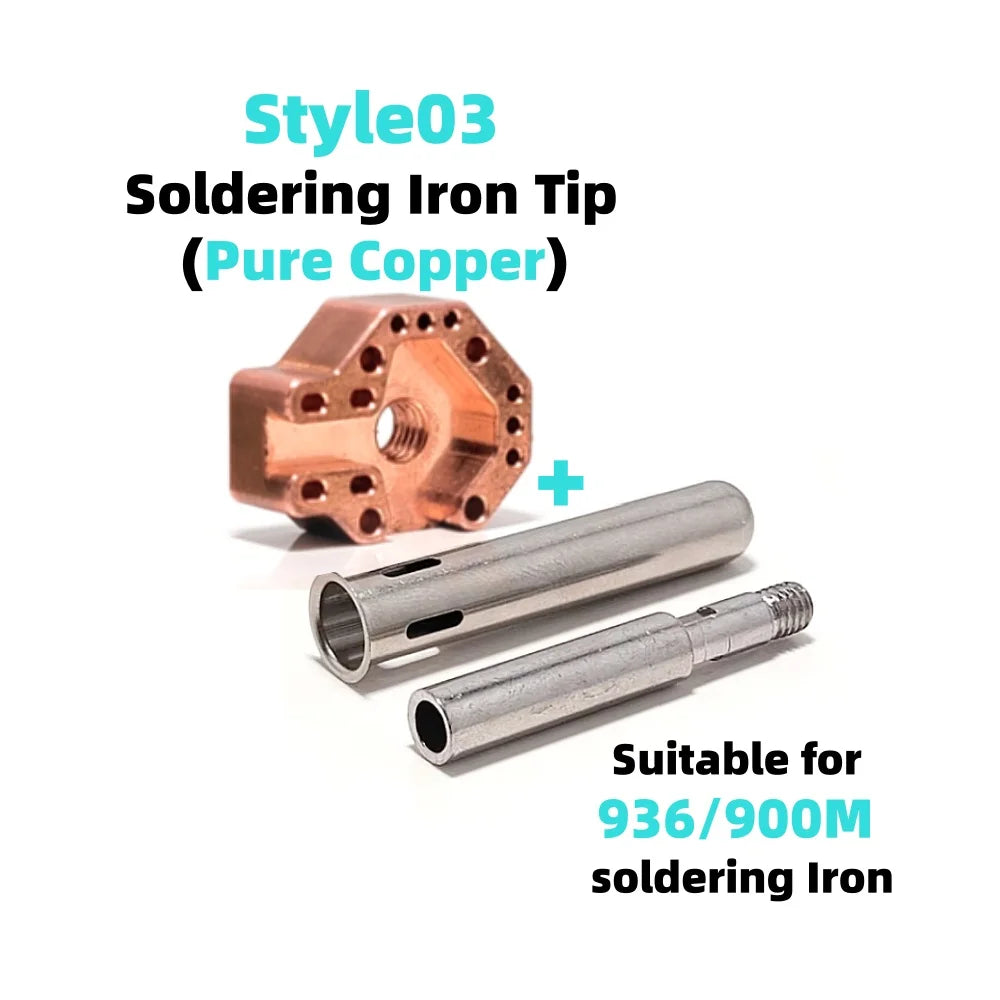

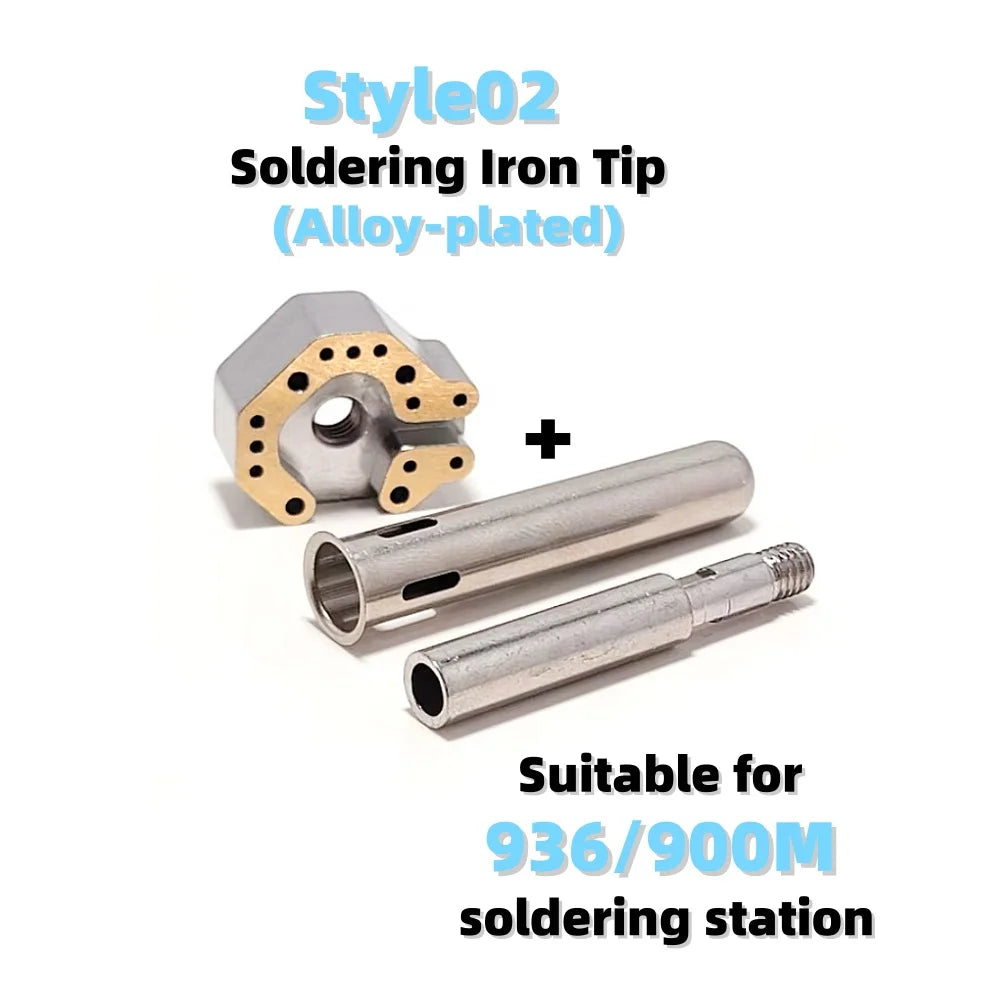

②936 series (Hakko 936/900M or compatible):936 Version
③C245 series (JBC C245 or compatible):C245 Version

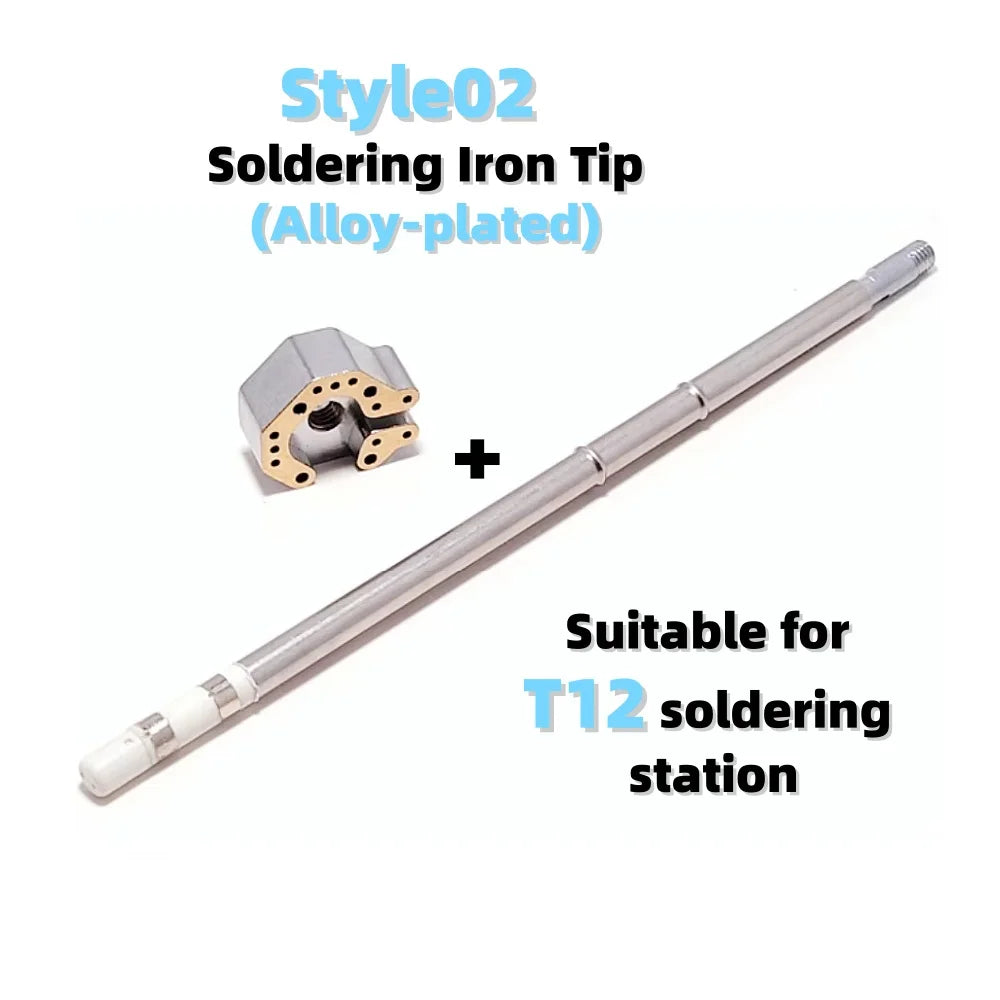

④T12 series (Hakko T12 or compatible):T12 Version

⚠️ Important – C210 is NOT compatible with this product. C210 is a micro-soldering system (12V/~40W) for delicate tasks like phone board repairs. It cannot deliver sufficient heat for 14-pin joystick desoldering.

⚠️ Special note:

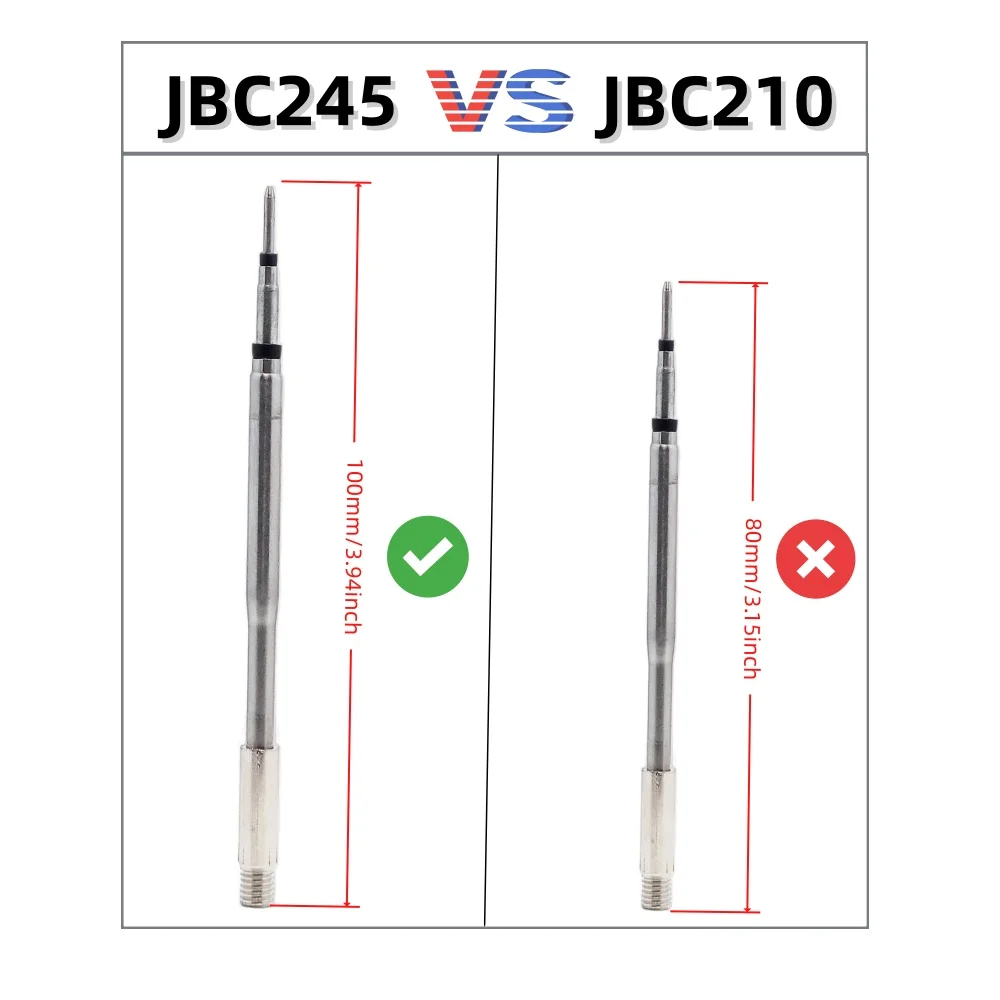

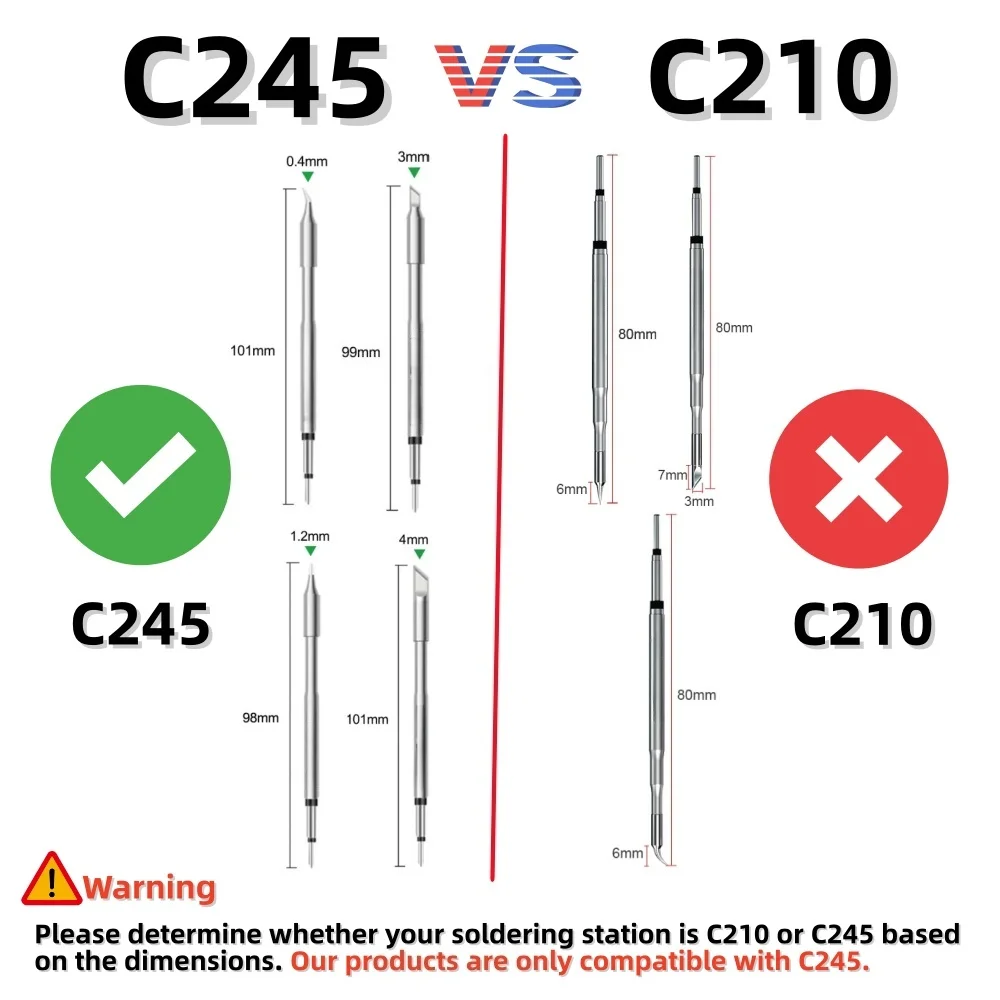

Please refer to the heating element comparison image below to confirm whether your soldering station model is C245 or C210, to avoid purchasing the wrong heating element, which could lead to it being unusable or burning out.

Key Features

1. 14-Pin Simultaneous Heating
The specialized head design simultaneously heats all 14 solder points of the analog stick. Old solder melts uniformly, allowing clean and quick removal in seconds.

2. Anti-Burn PCB Design
By heating all pins at once, total heat exposure time is minimized. The shape also precisely targets the joystick base, keeping surrounding sensitive components and PCB pads safe from damage.

3. Integrated heating head + heating element assembly
Sold as a complete set, ready to use. You will need to install it yourself. After installation, simply insert it into the handle to begin repairs immediately.

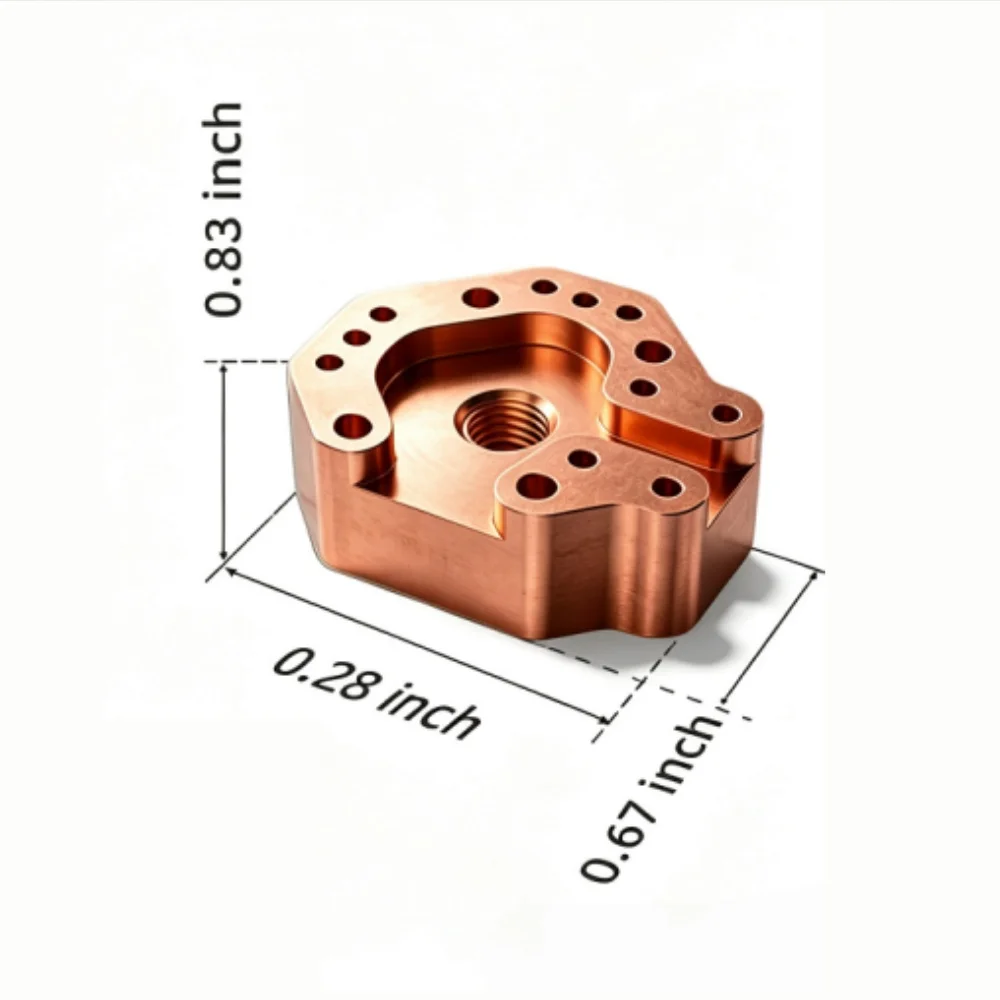

4. Durable Alloy Construction
Crafted from high-quality copper alloy with iron plating for fast heat transfer and extended service life.

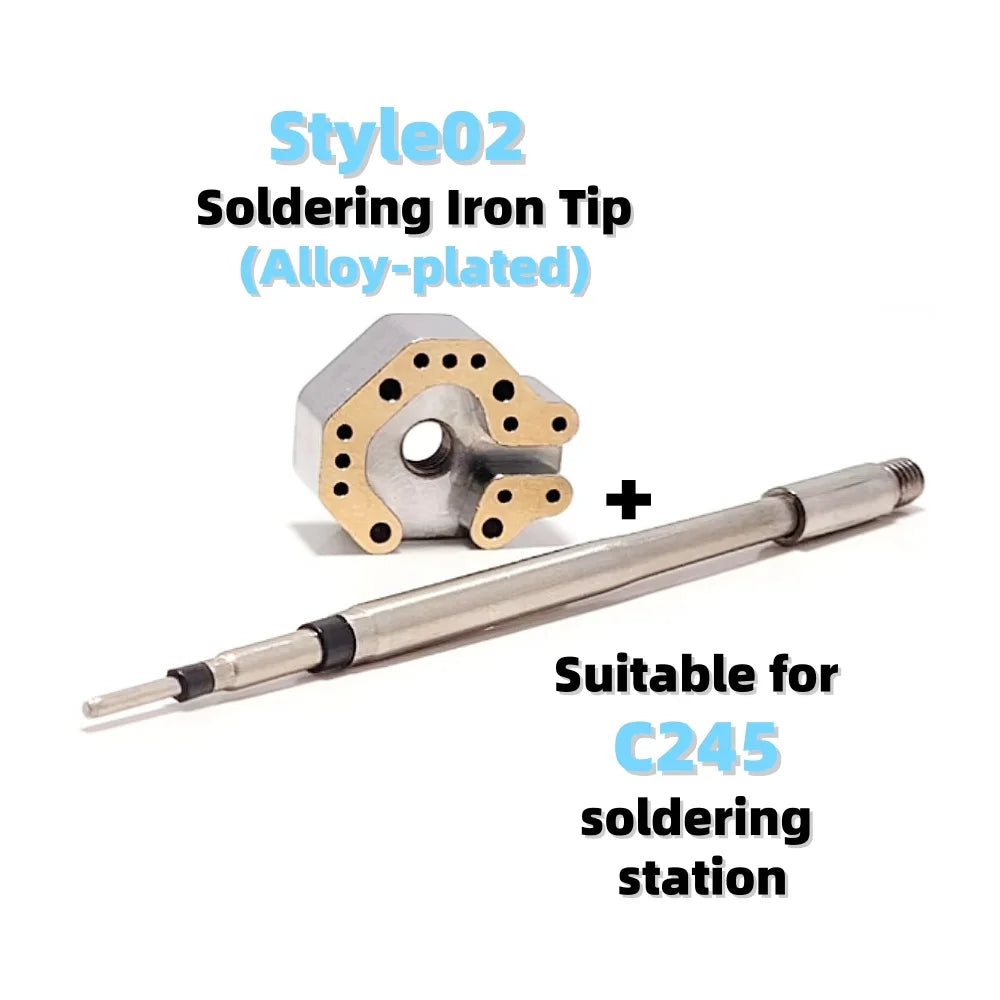

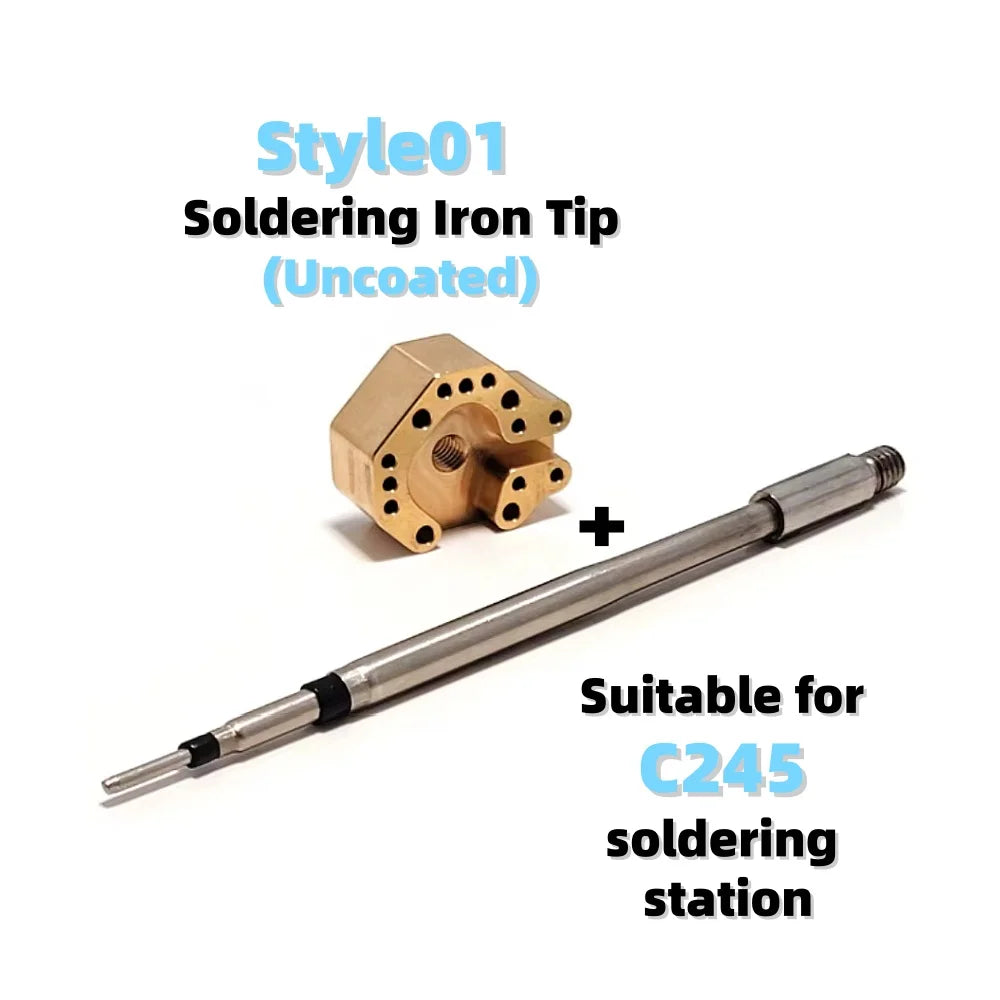

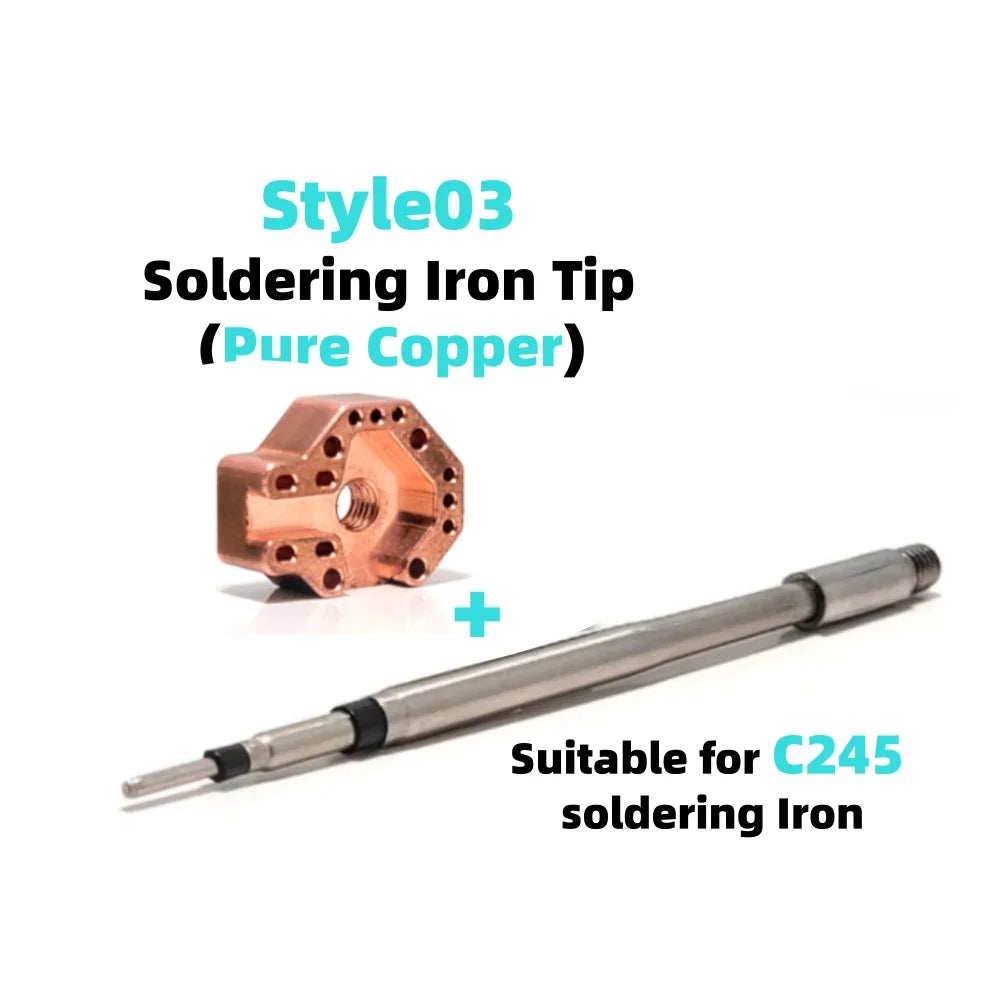

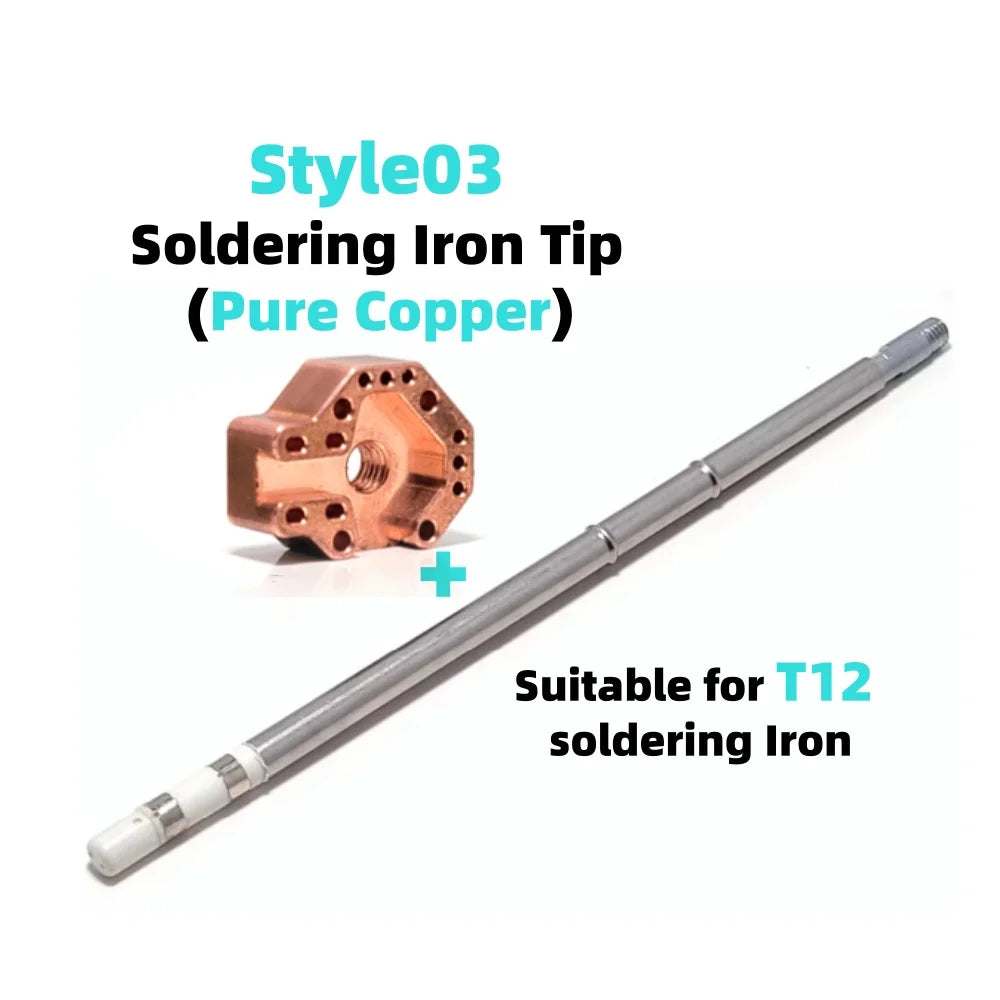

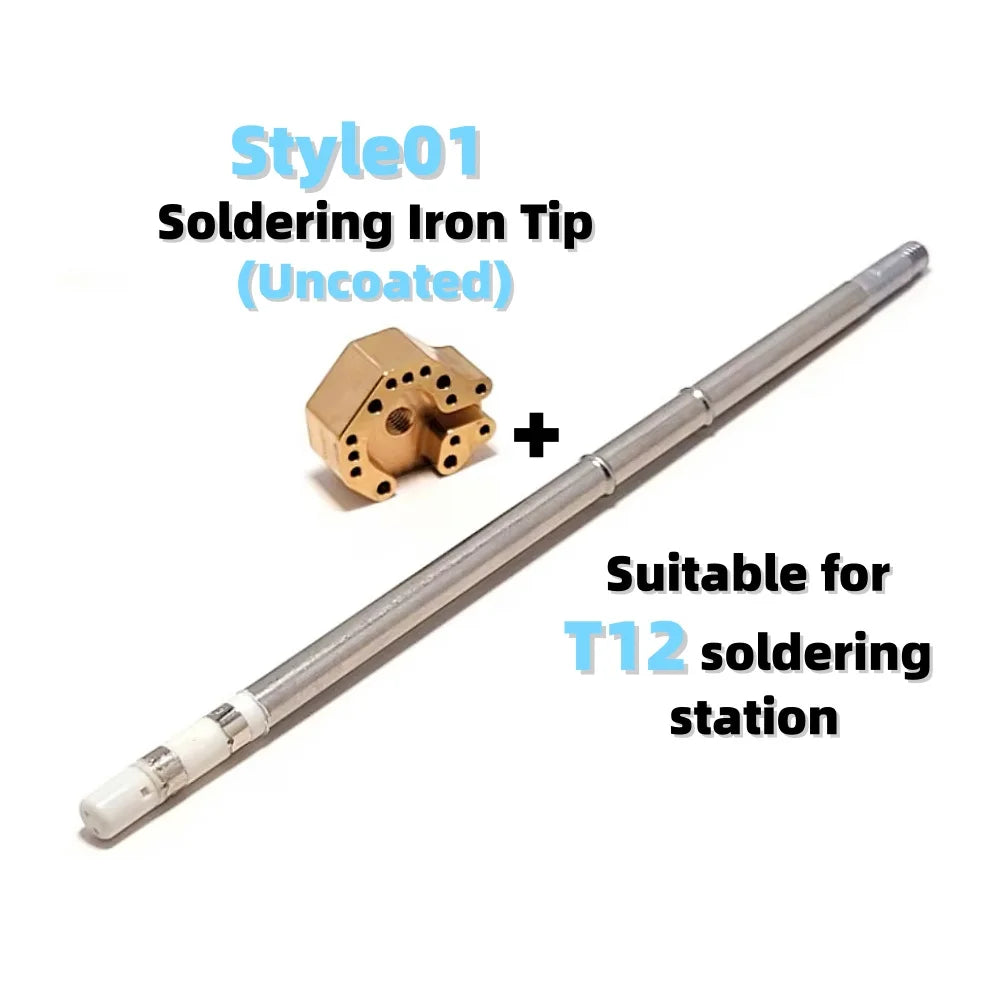

✨We offer two styles of Luotie caps, differing in design and colour, with corresponding price variations. Please select according to your requirements: Style 01 and Style 02 as illustrated below.

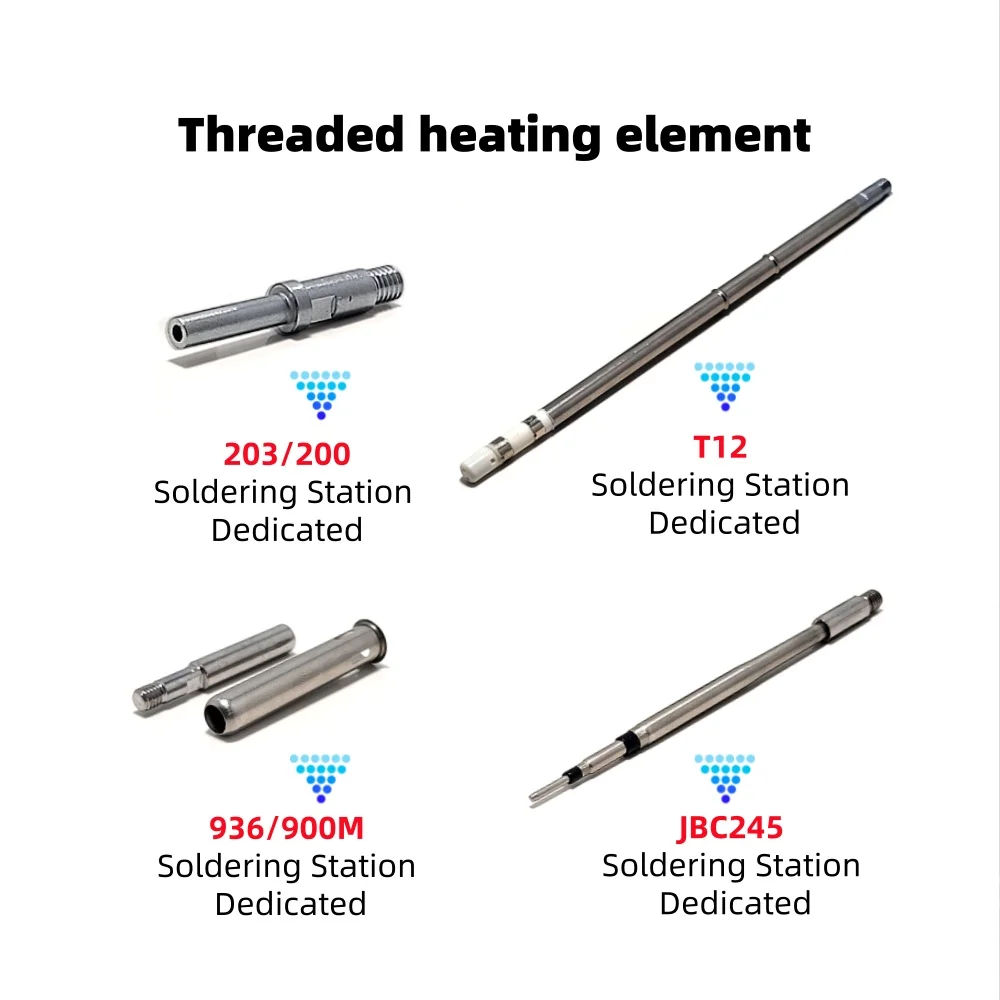

📌We offer heating elements compatible with three soldering station models: (936/900M)/JBC245/T12. Please purchase the corresponding heating element based on your existing soldering station model. Should you be uncertain which heating element is required for your unit, kindly contact our pre-sales customer service team with your soldering station details for confirmation to avoid purchasing an incorrect product.

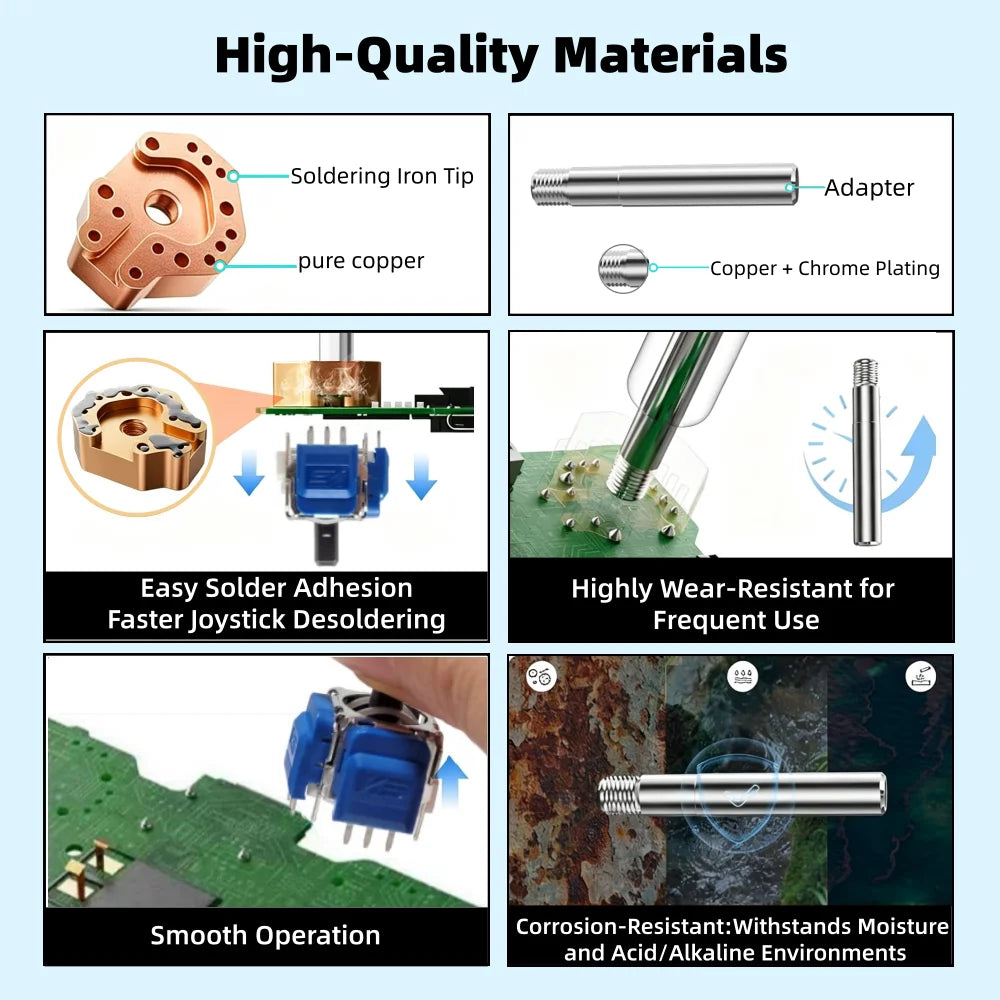

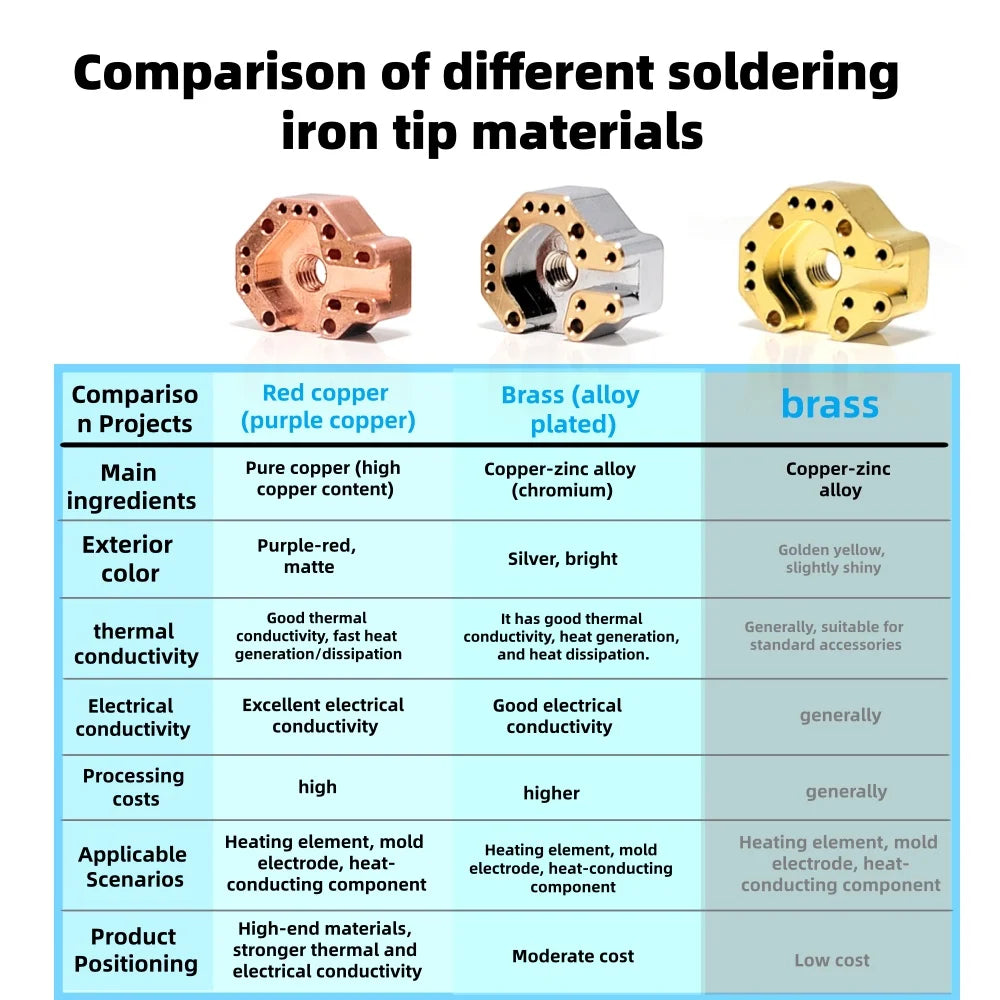

Soldering Iron Tip Material Comparison: Pure Copper vs Chrome-Plated Brass Alloy vs Brass

✅ Pure Copper Tips
Pros: Excellent thermal conductivity, fast heat-up, great solder adhesion, concentrated heat

Cons: Prone to oxidation, wears out quickly, loses tinning ability if left idle, requires frequent maintenance

Who should choose: If you solder daily, demand the best heat transfer and soldering experience, and don't mind maintenance — go for this one.


✅ Chrome-Plated Brass Alloy Tips
Pros: Combines brass strength with chrome's oxidation resistance, high hardness, stable at high temperatures, long service life

Cons: Relatively higher cost

Who should choose: If you have heavy workload, use it frequently, don't want to replace tips often, and are willing to spend a bit more for peace of mind — go for this one.


✅ Brass Tips
Pros: Better oxidation and wear resistance than copper, lower cost

Cons: Significantly lower thermal conductivity, slow heat-up, poorer soldering experience

Who should choose: If you're on a budget, do occasional repairs, and don't need top-tier efficiency — go for this one.

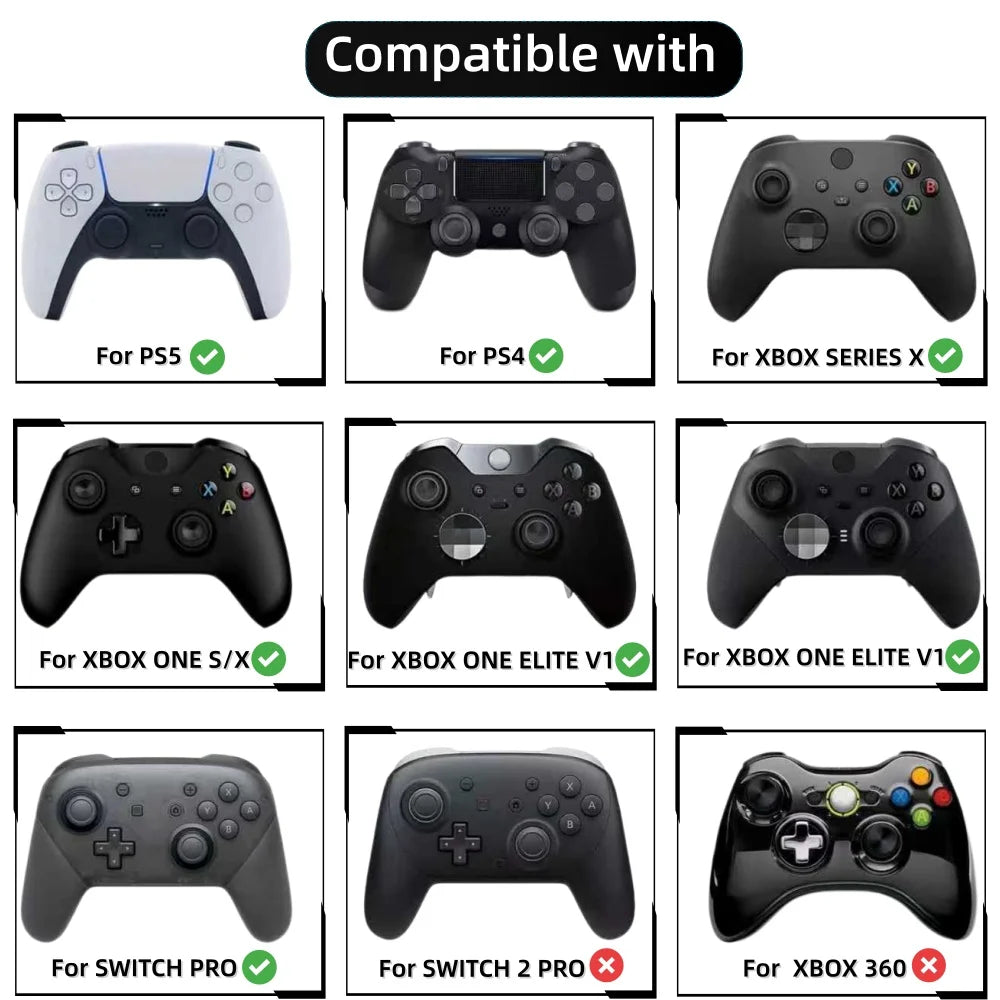

Compatible with:

For Sony PS5 / PS4 Controllers
For Microsoft Xbox Series X / Series S / Xbox One Controllers
For Nintendo Switch Pro Controller

Not for Switch pro2/Xbox 360

Recommended Temperature

Set your soldering station to 350-380°C (660-715°F) for joystick desoldering. Adjust based on your specific solder type and board condition. Avoid exceeding 400°C to extend the unit's lifespan.

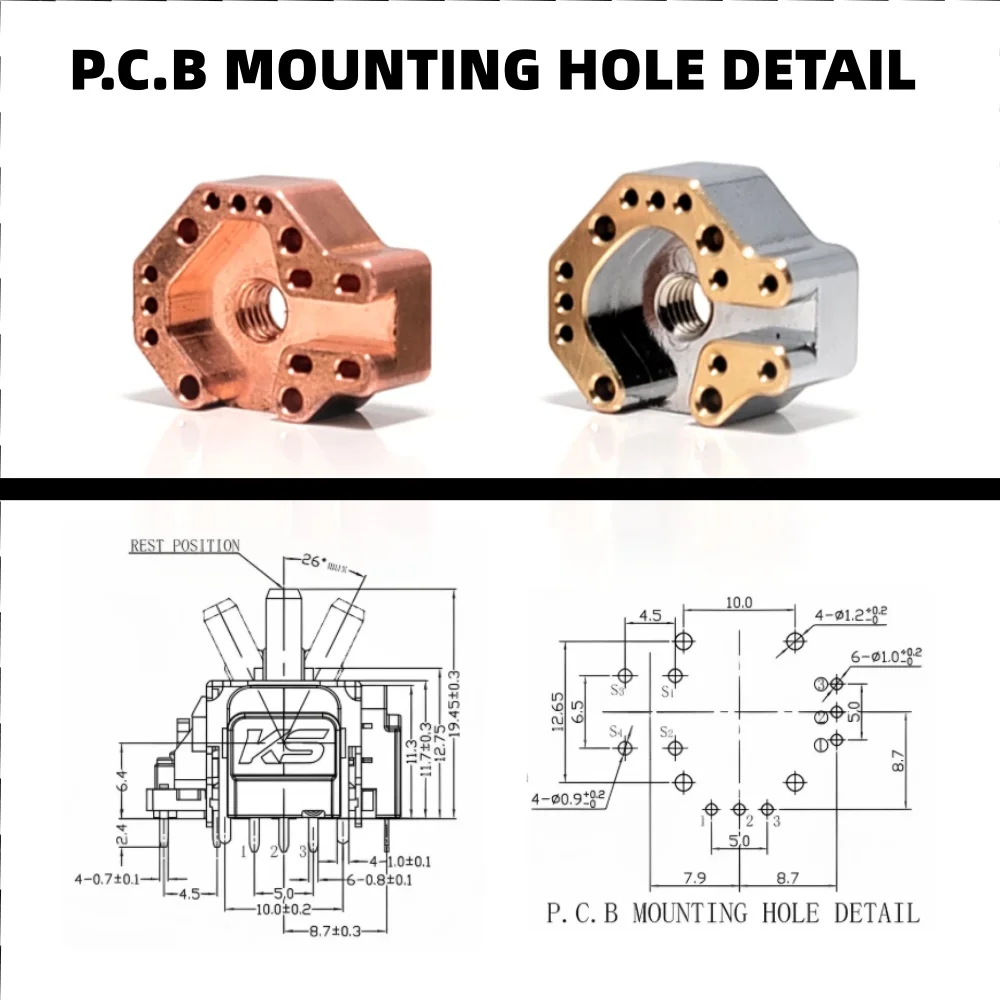

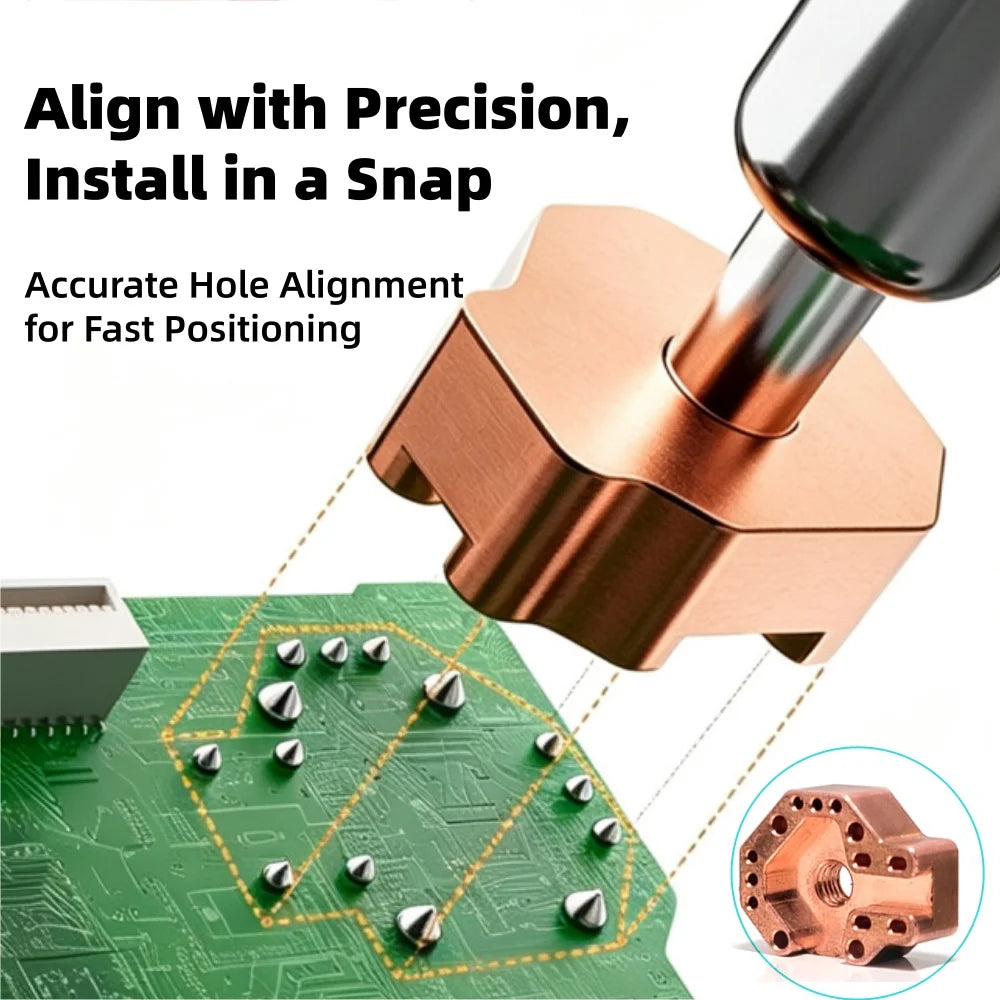

Joystick and Luotie Head Hole Position 1:1 Demonstration 👇

https://video.aliexpress-media.com/play/u/ae_sg_item/3000928442072/p/1/e/6/t/10301/5000429406290.mp4?from=chrome&definition=h265

Demonstration of connecting and installing Luotietou with heating core 👇

https://video.aliexpress-media.com/seller/play/5000429404731.mp4

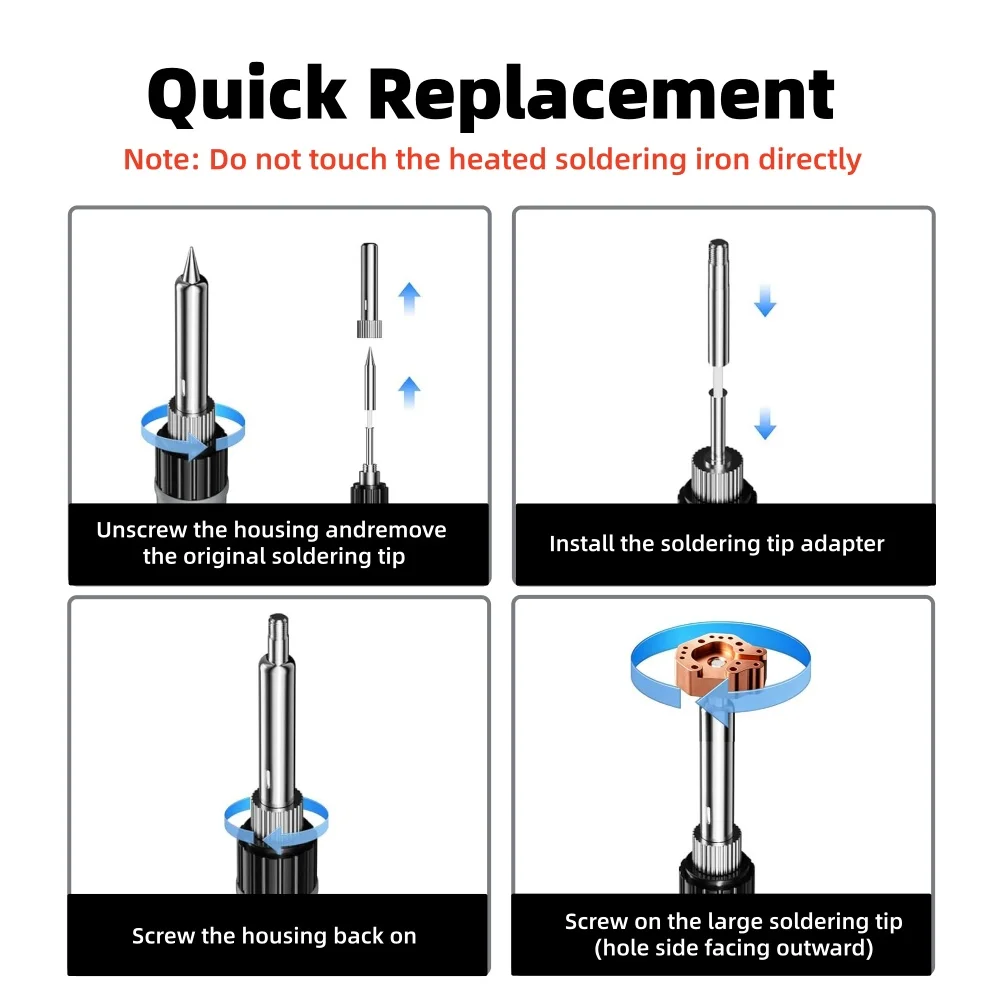

Steps for replacing a 936 soldering pen with a soldering iron tip 👇

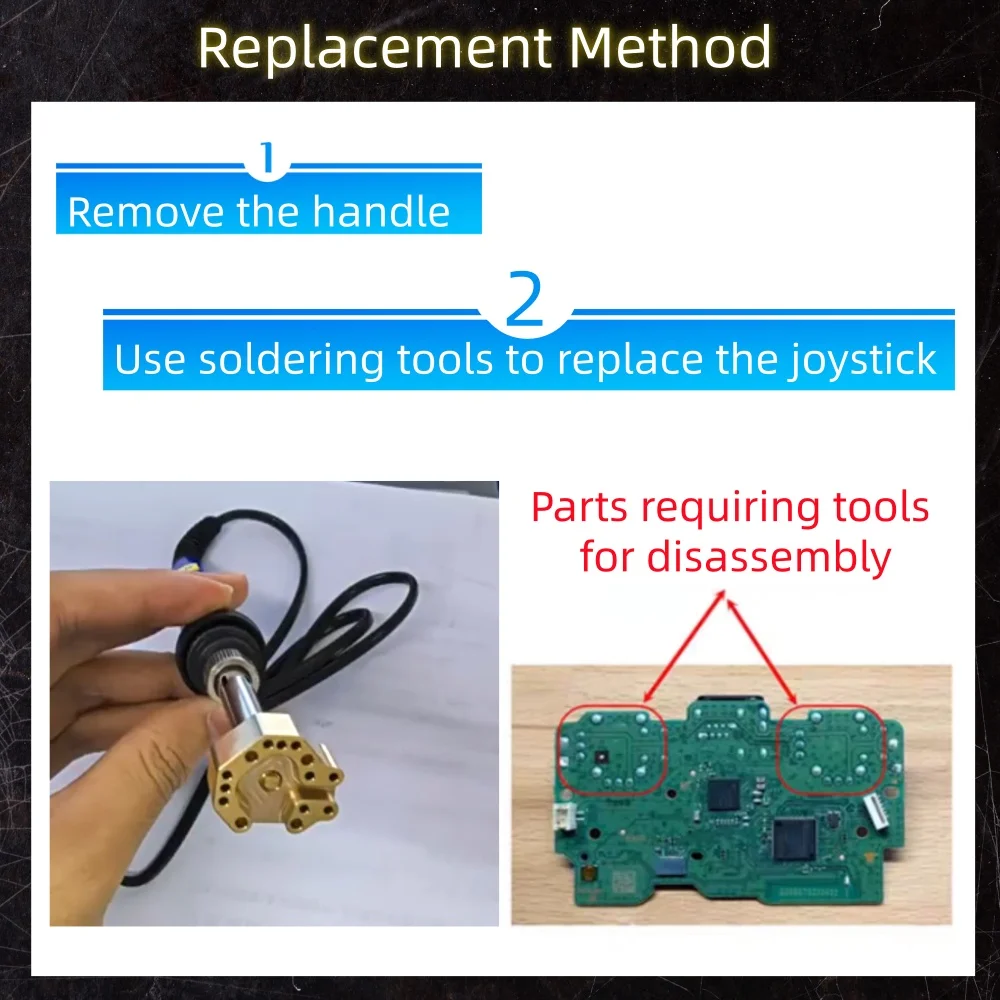

ℹ️Replacement Method👇:

1.Disassemble the game controller and locate the corresponding joystick.
(*Disassembling the game controller requires care to avoid damaging the components; professional operation is required.)
2.Use soldering tools to replace the joystick

⚠️ Warm reminder👇:

There is a risk of high-temperature burns during welding. Please pay attention to protective measures.

Package Includes:

1 × Desoldering Iron Unit (Tip + Heating Core pre-assembled)
