Hispeedido Highlight Backlight LCD Screen Mod Kits for Sega GG 8 Color Touch Sensor for SEGA GG Console W/VGA Output W/Shell

It is only a LCD kit. The console and game card are not included.

The glass screen lens is included.

This LCD kit is compatible with for SEGA GG, SMS and SG-1000 games.

1. Support Sega single chip motherboard and dual chip motherboard:

--Single chip motherboard:1 ASIC PCB revisions 837-9130 / 837-9024 / 837- 8560

--Dualchip motherboard:2 ASIC PCB revisions 837-7996 / 837-7719-01 VA0/837-7398-03

NOTE 1: Doesn't supported: Majesco Game Gear VA4 / VA5 !

NOTE 2: The motherboard with the "MADE IN TAIWAN" logo on the motherboard of the game console does not support.!

Description:

1. 640x480 display resolution. HD IPS LCD.

2. Same display size as the original screen.

3. Wide View angle up to 178 degree.

4. Built-in OSD Menu!

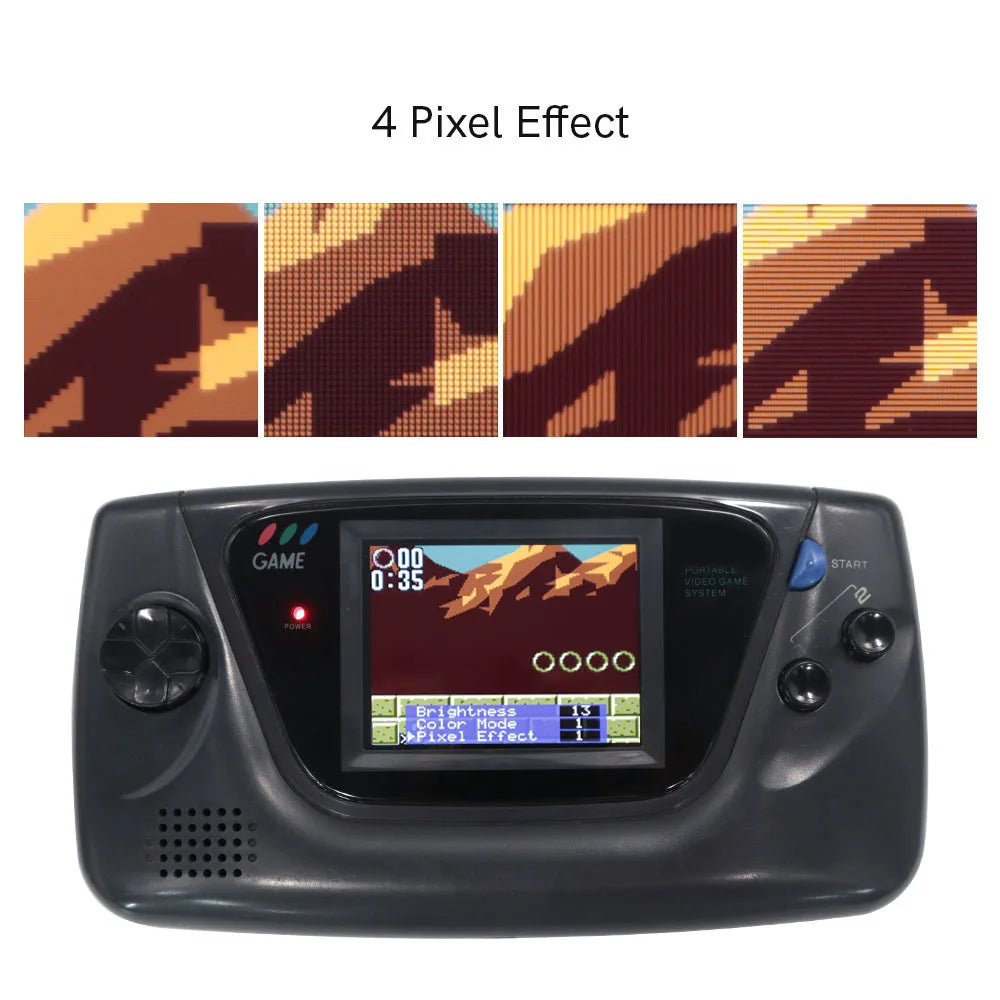

5. Retro pixel Effects: Normal, Retro pixel, Scanline 1 and Scanline 2.

6. High brightness, 15 brightness levels.

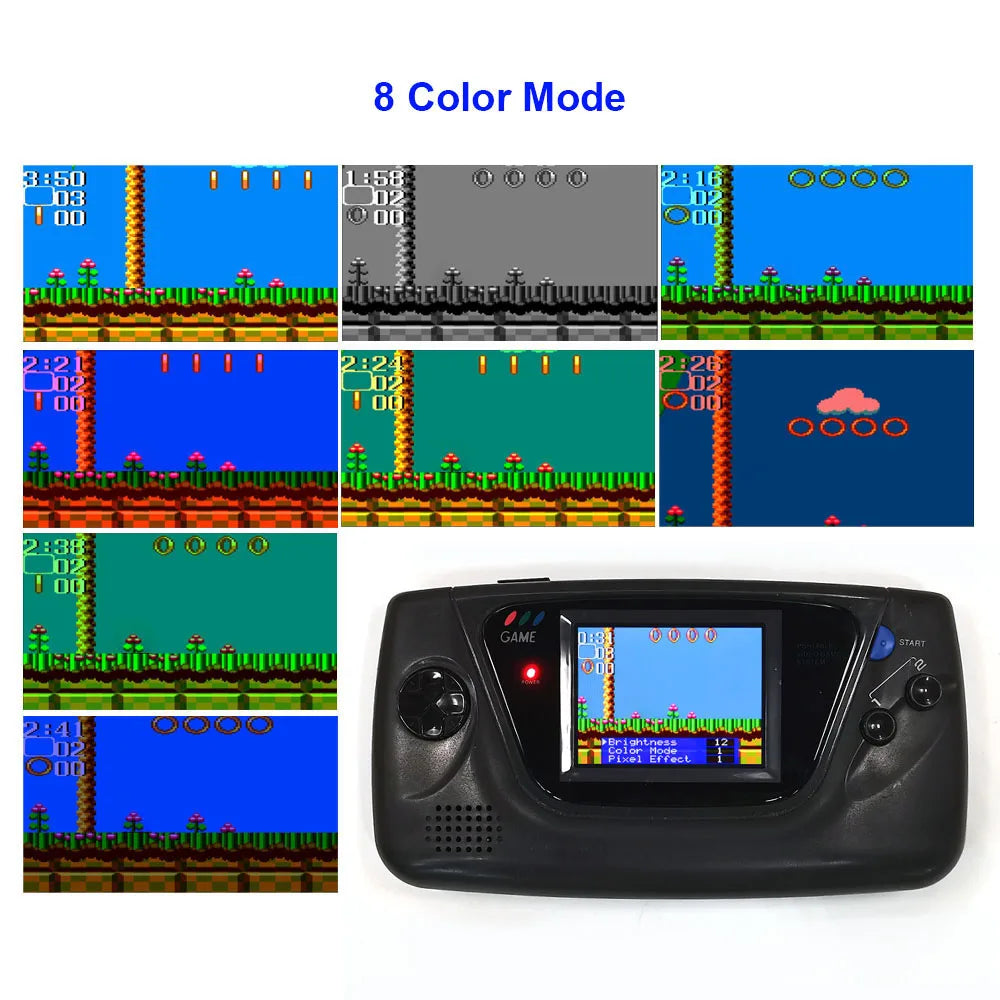

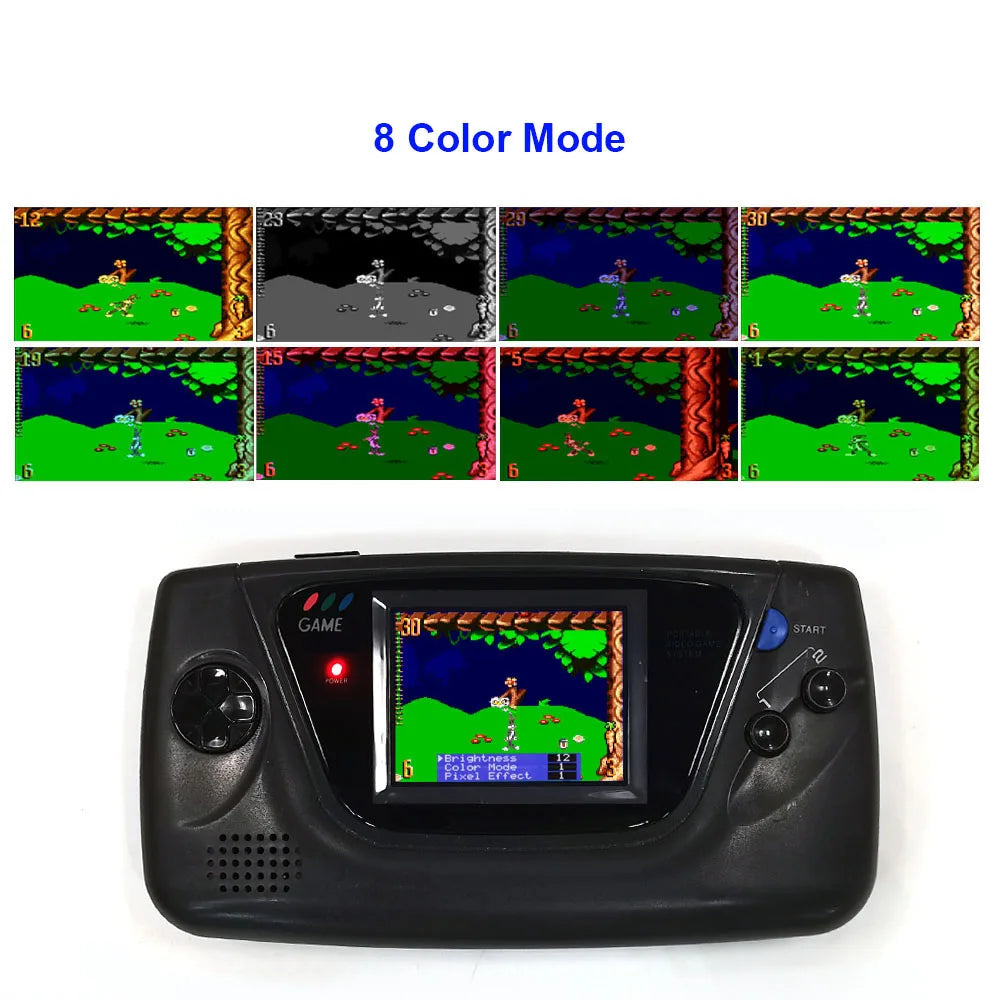

7. 8 color modes.

8. Built in 3 LCD Aspect Ratio.

9. Image position adjustable. No worry to aligning the LCD screen.

10. 720P HDMI-Compatible Output. Support to play games on TV Set.

11. Built in 3 TV Aspect Ratio.

12. FPC connect cable design. Simpler wiring and easier installation.

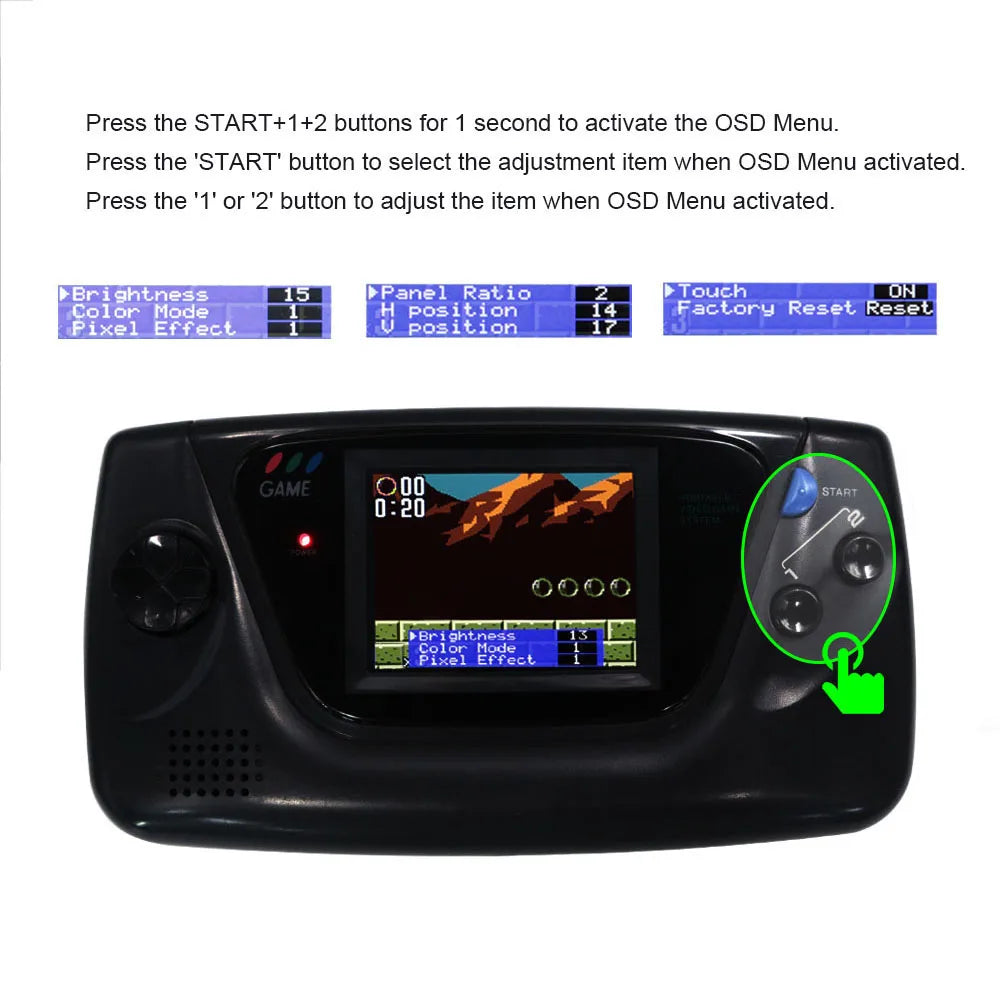

OSD Menu Operation:

-Press the START+1+2 buttons for 1 second to activate the OSD Menu.

-Press the 'START' button to select the adjustment item when OSD Menu activated.

-Press the '1' or '2' button to adjust the item when OSD Menu activated.

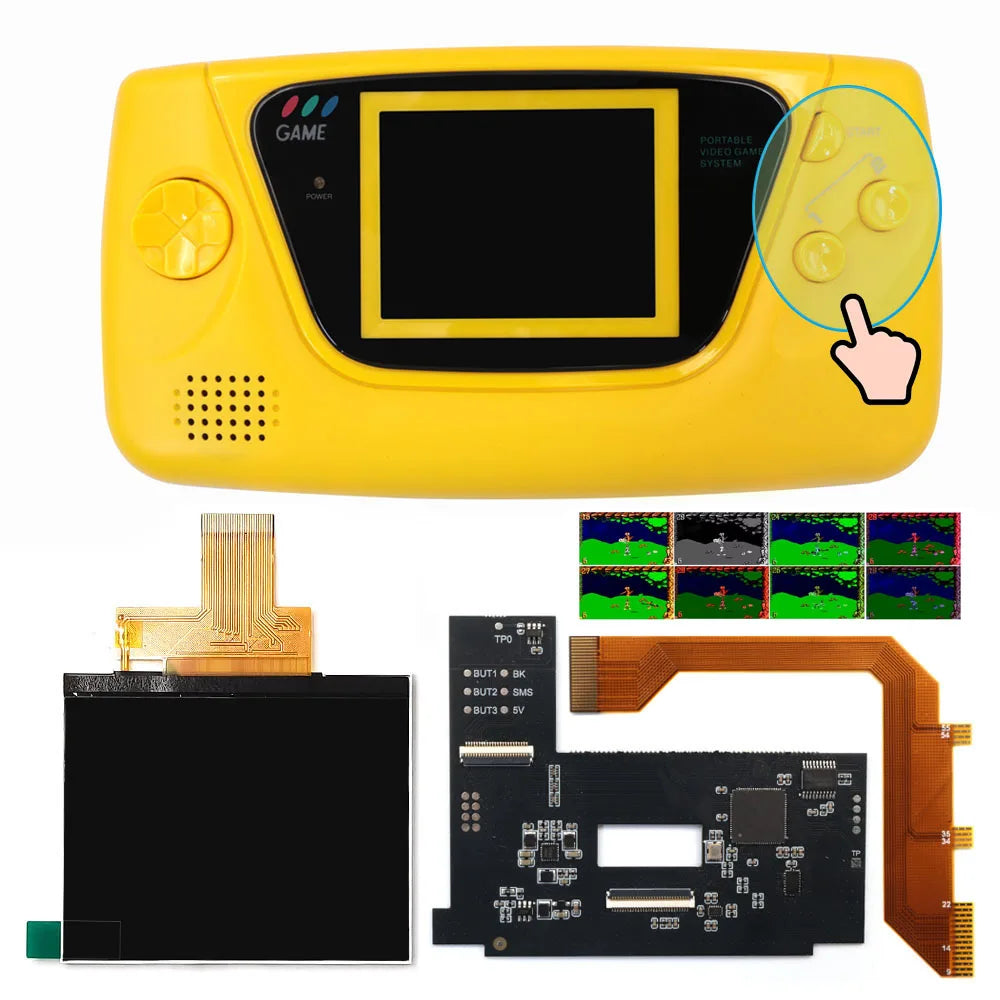

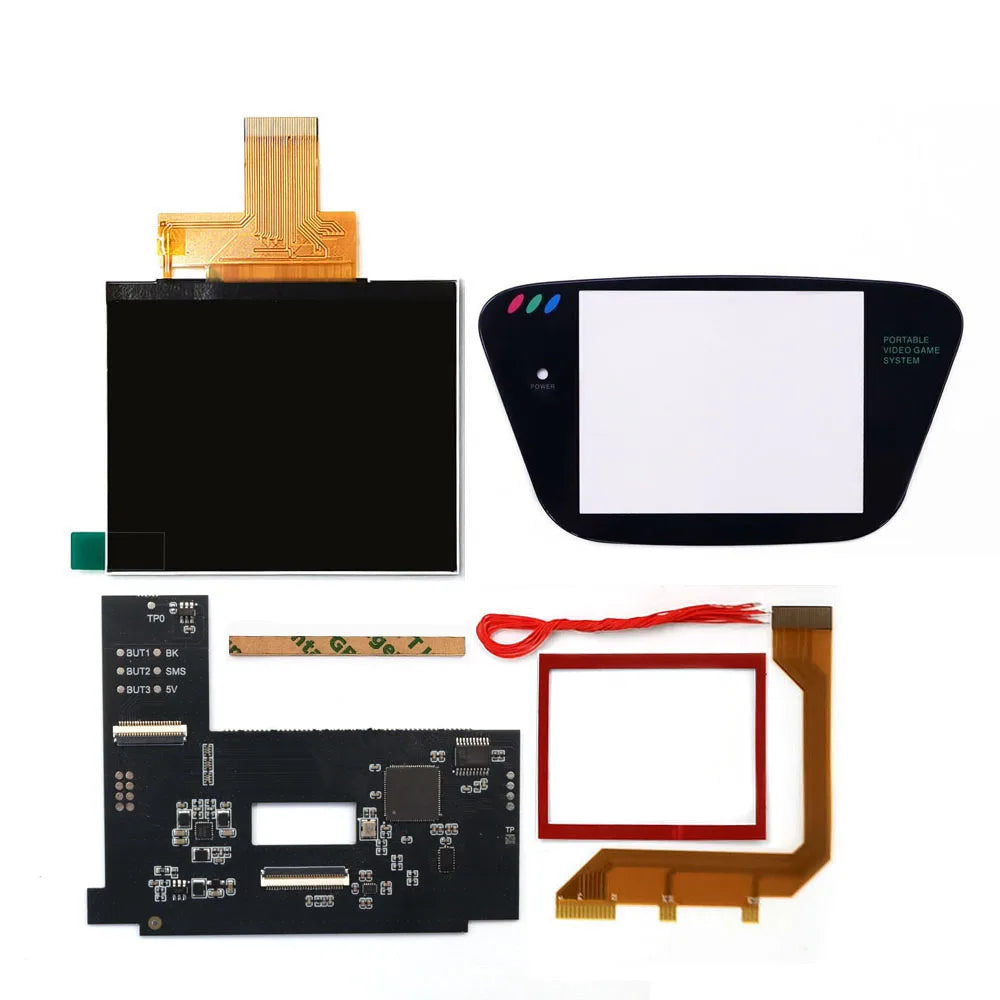

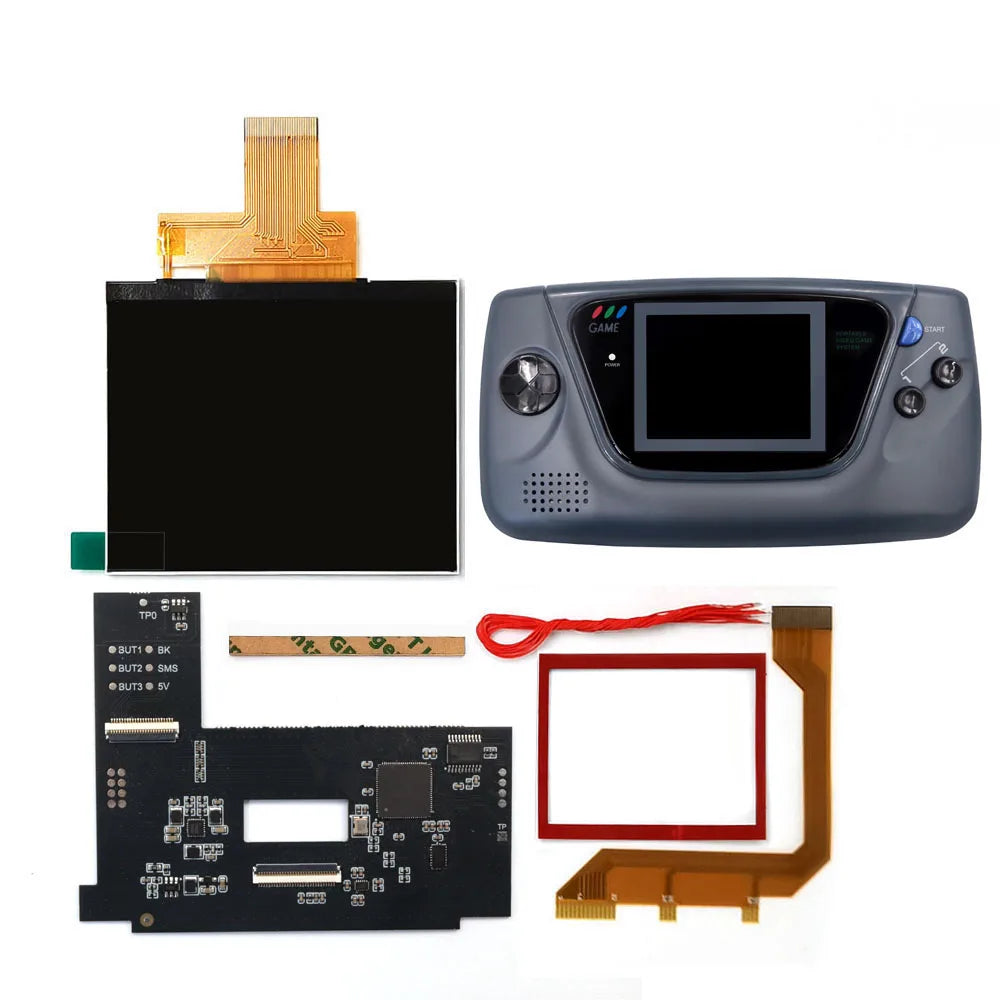

Packing including :（The LCD kit does not include the housing）

1xBacklight LCD.

1x Without HDMI version PCB.

1x FPC connect cables.

1xDouble-sided tape.

5x 10pF capacitors.

2x 200Ohm resistor

Several Red wires.

1x Glass screen lens.

1xshell
